Description
These fixtures are a great replacement for your current 5ft cooler lights. These lights are Certified to be safe around foods and drinks and have the proper protection to prevent any moisture from damaging the lights. These lights will replace the existing fixture and come with an Internal Driver. All that is needed is 4 screws to install (2 at the top & 2 at the bottom). Once installed, there will be 2 ways to wire the lights; direct wire or in a series.
Features
- 50,000 hours life expectancy
- IP65 Rated light module for use in Commercial Refrigerators and Freezers
- Dramatically improves the look of any food or merchandise being displayed
- The energy-efficient design significantly reduces the cost of ownership- savings up to 75%.
- The light diffuser contains no glass providing zero risk of glass breakage.
- Instant start in cold environments.
- Mercury and Lead-Free
- Local utility incentives may be available
- Binned diodes for color uniformity
- 5-years warranty
This product is listed under DesignLights Consortium® (DLC) which does not only provides eligibility for rebates from most utility providers but also promotes high-quality and energy-efficient lighting products through vigorous testing protocols.
Specifications
Qualification: DLC, UL Listed
Power: 22W
Color: 5700K
Lifespan: 50,000 hours
Lumens: 2420 Lumens (110 lm/w)
Frequency: 50-60hz
Length: 5 feet
Warranty: 5 years
Package: 25pc/box

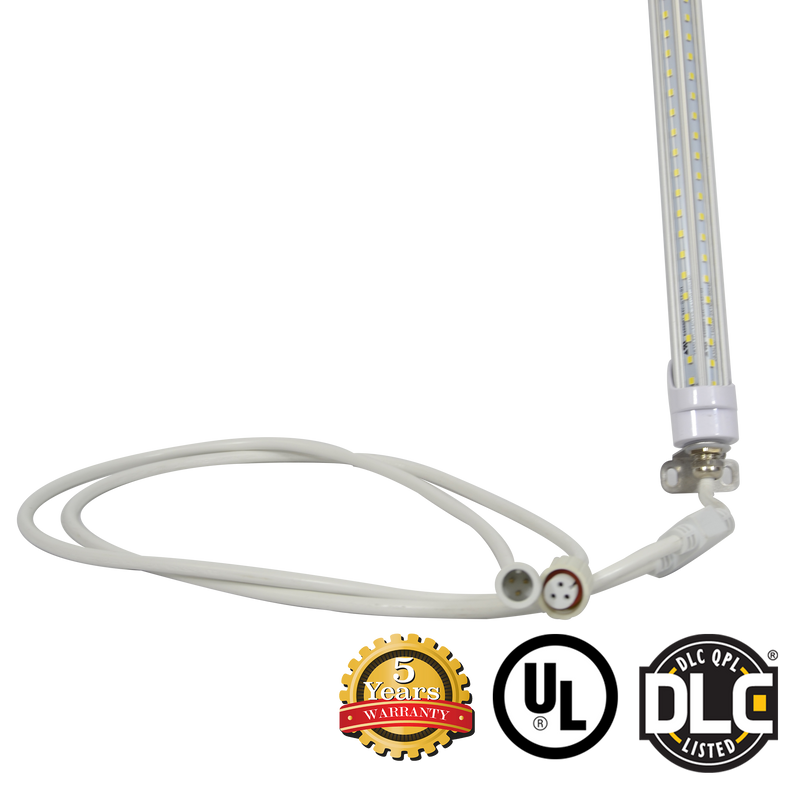

Direct wiring: Each light will come with an extension that wires directly to 100-277V. The red wire hooks up to the Neutral and the black wire hooks up to the Line (Power).

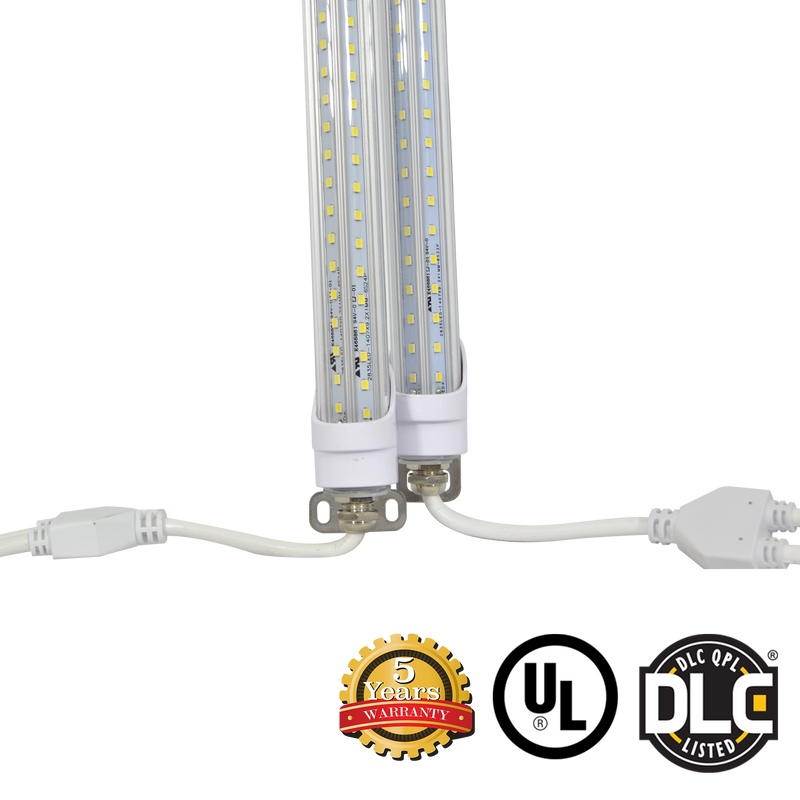

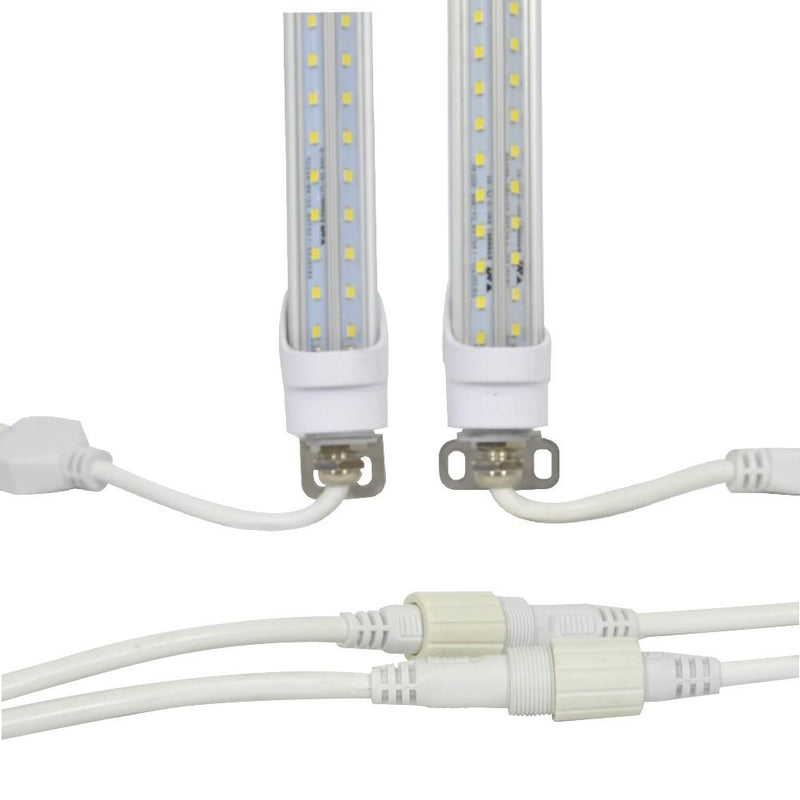

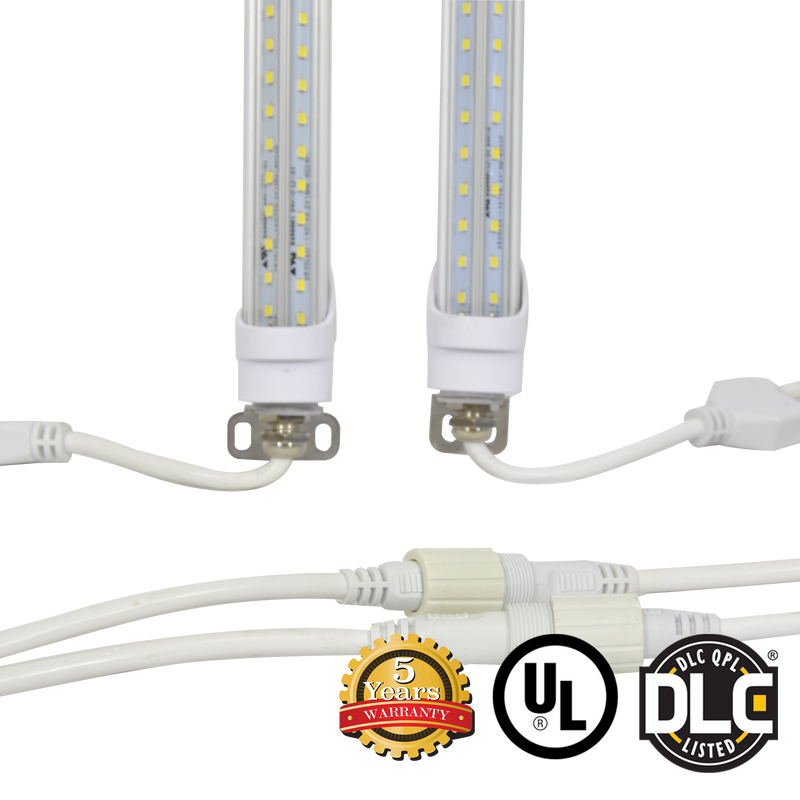

Series wiring: Each light will also come with a “Y” cable. These are custom cables that are given to hook each light together to avoid having multiple lead drops in a certain area. First, you will remove the current direct wire plug from the fixture. You will then attach the Y cable. After attaching the Y cable, the first tube of the series will need the direct wire cable to provide power to the lights. You will then take the opposite connector and hook it up to the next fixture. The ends are female and male ends, therefore, you will hook a female end to a male end. We recommend connecting up to 5 fixtures. The amount of cooler doors one can hook up will vary from location to location based on amperage and breaker loads.
